System requirements

Self-service kiosk (outdoor)

Supported devices

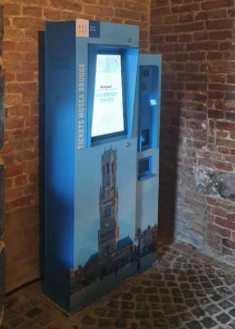

Model Diz5000

  • Outdoor kiosk with 19" touchscreen

  • Water & dust resistant up to IP43

  • Kiosk maintenance via front panel, door mechanism (= can be placed against a wall)

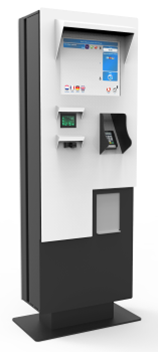

Model 2022 (Gantner)

  • Outdoor kiosk with 22" touchscreen


Kiosk components and options

Kiosk housing:

  • Standard colour: black/white (RAL9005/RAL9003)

  • Option: replace the standard white colour with a different colour

  • Option: full-colour sticker (front)

Standard components:

  • POS system: HP Engage Flex Mini 10500T 8GB/256 PC

  • Screen: 19” 4:3 format touch screen

  • Membership card reader: Newland FM3281 Combi reader

  • Receipt printer: Custom VKP80III - serial, USB

  • Climate control (cools interior when temperature rises, warms when cold or humid, with temperature and moisture sensors to switch on or off automatically)

Optional components:

  • Belgian eID reader: eID smart card reader USB-HID interface [SPT3-8505-HID-USB]

  • Ticket printer (paper/card tickets): Boca Lemur-K - Standard kiosk, with cutter Bottom or Top Opto RADJ

  • Wristband printer: Zebra ZD411, 8 dots/mm (203 dpi) USB - disposable wristbands for swimming pool or spa with plastic look & feel

    • Zebra wristband printer cutter

  • Wristband printer: Boca Lemur-C 26, no display, Eth / Ser / USB, cutter, 2'' AD - disposable wristbands for the non-humid environment with paper look-and-feel

    • Paper low sensor PNP 500mm Sensor IP67

Payment terminals:

  • Enviso Pay (Adyen)

    • Adyen Castles S1U2 (incl. power supply)

      (successor of Adyen UX100/UX300/UX400)

  • Worldline - BE / NL

    • ATOS VALINA CVM (with Pin possibility)

  • CCV Easy - BE / NL / DE

    • CCV DE OPP-C60 Compact

    • CCV DE SCR-C Card reader

    • CCV DE Contactless reader COR-A10

  • CCV Easy - UK

    • Verifone UX 100 Pinpad

    • Verifone UX 301 Card Reader

    • Verifone UX 401 Contactless Reader

Configuration option "no payment terminal" is not available or supported.
